Quad entities without black outline

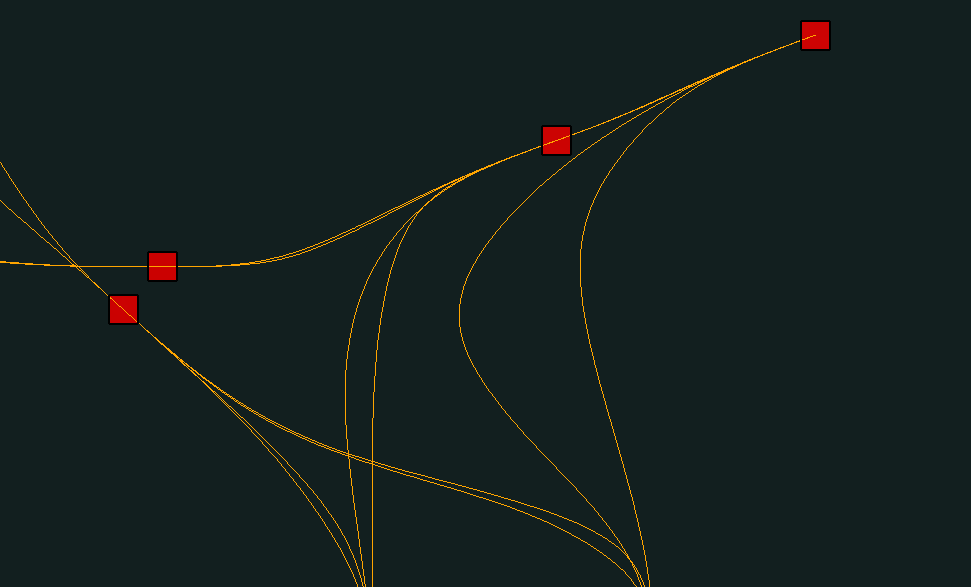

When drawing quads on a dark background they are clearly visible if zoomed in, if zooming out the linear paths are still clearly visible while the quads become black due to their black outline. Is there a way to draw the quads without this outline? Otherwise I would like it to be added, thank you!

1

Comments

7 comments
  • Did you try using the devDept.Eyeshot.Entities.Point entity? You get a zoom-invariant square. Without edge by the way.

    0
    Comment actions Permalink
  • Yes, I initially used the point entity but unfortunately I don't want it to be zoom-invariant. Is there an option to disable that for point?

    Or maybe an option to change the edge color on the quad entity? That would suffice as well.

    0
    Comment actions Permalink
  • No, sorry.

    0
    Comment actions Permalink
  • Okay, thank you for your help!

    Would love for any (or all) of these suggestions to be added in future versions if possible.

    0
    Comment actions Permalink
  • Did you try disabling edge drawing?

    Model.Shaded.ShowEdges = false or Model.Rendered.ShowEdges = false



    0
    Comment actions Permalink
  • Thank you very much, that (Model.Rendered.ShowEdges = false;) worked!

    Will have to check more closely if it affected anything else in an unwanted manner but at first glance it looks perfect.

    0
    Comment actions Permalink
  • You can even inherit your own class from Quad entity, override the DrawEdges() method and intentionally don't call the base implementation.

    0
    Comment actions Permalink
