Specify the character spacing for Text
Junji SAWADA
I would like to specify the character spacing for Text.
The following example represents the same string with different character spacing.
In order to represent characters This is a very necessary function.
1
Comments
How is this property called in AutoCAD?
MultiText is simpler to explain.
There are several ways to do this, but the simplest is:
First, draw MultiText.

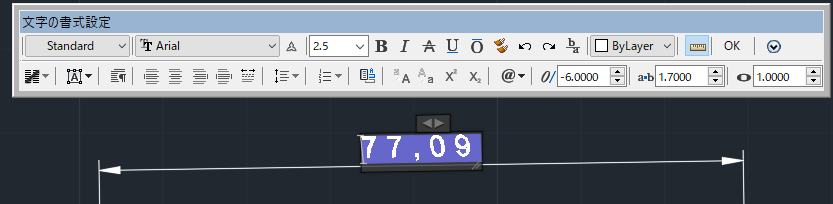

Then double-click MultiText.
Then, the properties will open, and you can change the text spacing.
You can also specify the slant angle for the text by the same operation.
In fact, we also need the slant angle feature.
We understand that implementing these features is difficult, but for us they are the features we need.
Does it affect also single-line text and dimensions text?
It also affects dimension text.
I couldn't find it about single-line text.
I requested this 3 years ago.
This is a very important function for expressing characters in general CAD, so I requested it again.
We would like this to be supported if it’s just Text and MultiLineText Entity.
Please put it into your roadmap.
