arc length dimension

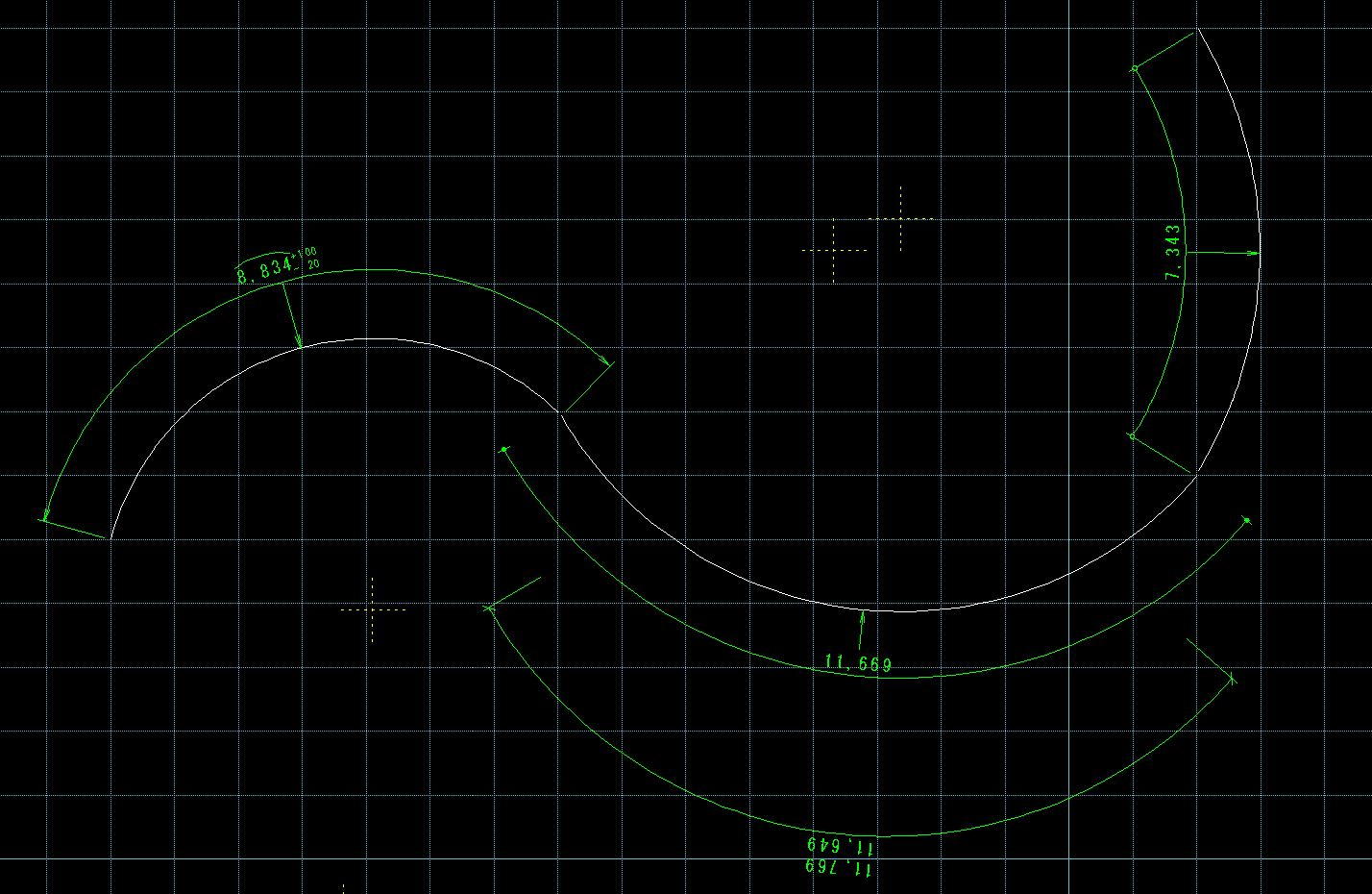

The arc length dimensions you want to support are as shown in the attachment.
The arc length dimension requires the same properties as the linear dimension. It is also helpful to be able to draw an auxiliary line from the midpoint of the arc to the midpoint of the dimension line.
