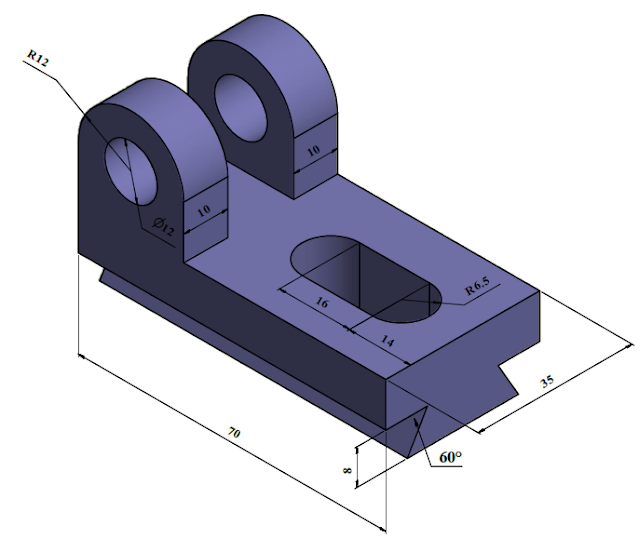

devDept.Eyeshot.Entities.Region front = devDept.Eyeshot.Entities.Region.CreatePolygon(Plane.XZ, new Point2D[]{
new Point2D(0,0),
new Point2D(12.5,0),
new Point2D(12.5-5,8),
new Point2D(17.5,8),
new Point2D(17.5,16),
new Point2D(-17.5,16),
new Point2D(-17.5,8),
new Point2D(-12.5+5,8),
new Point2D(-12.5,0)
});
Brep ext1 = front.ExtrudeAsBrep(70);
CompositeCurve cc1 = new CompositeCurve(
new Line(17.5, -70, 16, 17.5, -46, 16),
new Line(17.5, -46, 16, 17.5, -46, 28),
new Arc(Plane.YZ, new Point3D(17.5, -58, 28), 12, 0, Math.PI),
new Line(17.5, -70, 28, 17.5, -70, 16)
);
Circle c1 = new Circle(Plane.YZ, new Point3D(17.5, -58, 28), 6);
devDept.Eyeshot.Entities.Region r1 = new devDept.Eyeshot.Entities.Region(cc1, c1);
ext1.ExtrudeAdd(r1, -10);
CompositeCurve cc2 = new CompositeCurve(
new Line(-17.5, -70, 16, -17.5, -46, 16),
new Line(-17.5, -46, 16, -17.5, -46, 28),
new Arc(Plane.YZ, new Point3D(-17.5, -58, 28), 12, 0, Math.PI),
new Line(-17.5, -70, 28, -17.5, -70, 16)
);
Circle c2 = new Circle(Plane.YZ, new Point3D(-17.5, -58, 28), 6);
devDept.Eyeshot.Entities.Region r2 = new devDept.Eyeshot.Entities.Region(cc2, c2);
ext1.ExtrudeAdd(r2, 10);
devDept.Eyeshot.Entities.Region slot = devDept.Eyeshot.Entities.Region.CreateSlot(0, 0, 16, 6.5);
slot.Rotate(Math.PI / 2.0, new Vector3D(0, 0, 1));
slot.Translate(0, -28.5, 16);
ext1.ExtrudeRemove(slot, -20);
design1.Entities.Add(ext1, Color.MediumSlateBlue);Part2
Davide Angiolini
