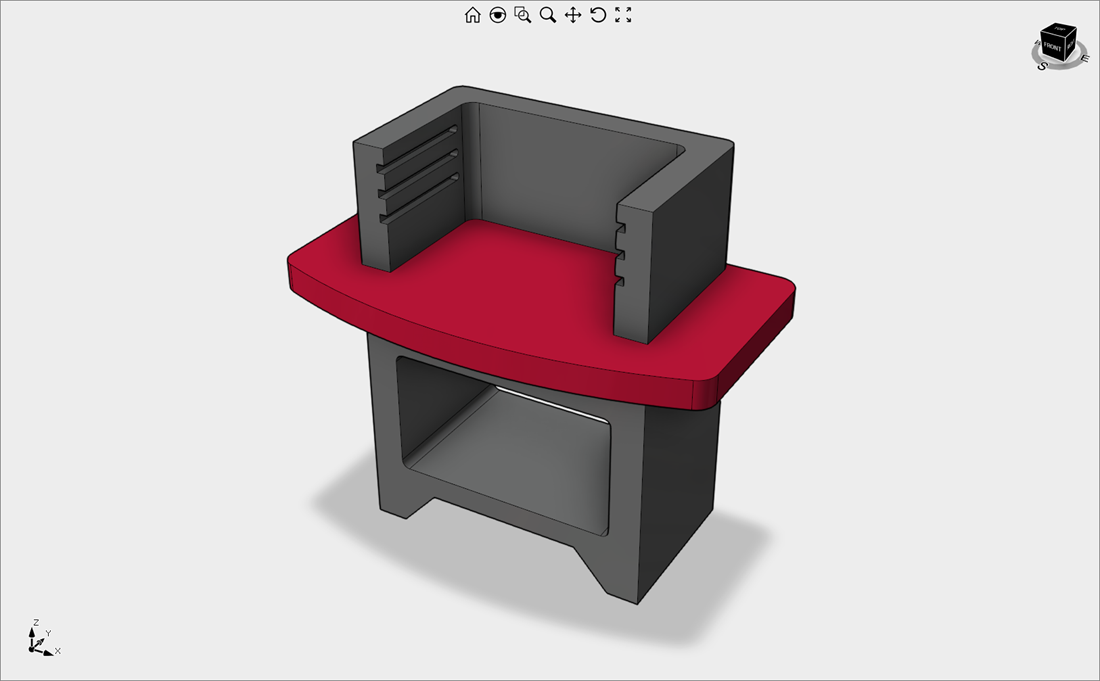

Barbeque


model1.Layers[0].Color = Color.FromArgb(127, 127, 127);

CompositeCurve basementOuter = new CompositeCurve(
    new Line(Plane.XZ, 0, 0, 80, 0),
    new Line(Plane.XZ, 80, 0, 170, 100),
    new Line(Plane.XZ, 170, 100, 560, 100),
    new Line(Plane.XZ, 560, 100, 650, 0),
    new Line(Plane.XZ, 650, 0, 730, 0),
    new Line(Plane.XZ, 730, 0, 730, 625),
    new Line(Plane.XZ, 730, 625, 650, 625),
    new Line(Plane.XZ, 650, 625, 580, 540),
    new Line(Plane.XZ, 580, 540, 150, 540),
    new Line(Plane.XZ, 150, 540, 80, 625),
    new Line(Plane.XZ, 80, 625, 0, 625),
    new Line(Plane.XZ, 0, 625, 0, 0));

CompositeCurve basementInner = new CompositeCurve(
    new Line(Plane.XZ, 80, 180, 80, 460),
    new Arc(Plane.XZ, new Point2D(100, 460), 20, Utility.DegToRad(180), Utility.DegToRad(90)),
    new Line(Plane.XZ, 100, 480, 630, 480),
    new Arc(Plane.XZ, new Point2D(630, 460), 20, Utility.DegToRad(90), 0),
    new Line(Plane.XZ, 650, 460, 650, 180),
    new Arc(Plane.XZ, new Point2D(630, 180), 20, Utility.DegToRad(360), Utility.DegToRad(270)),
    new Line(Plane.XZ, 630, 160, 100, 160),
    new Arc(Plane.XZ, new Point2D(100, 180), 20, Utility.DegToRad(270), Utility.DegToRad(180)));

devDept.Eyeshot.Entities.Region basementReg = new devDept.Eyeshot.Entities.Region(new ICurve[] { basementOuter, basementInner }, Plane.XZ, false);
Brep basement = basementReg.ExtrudeAsBrep(-420);

const double filletRadius = 50;

Arc a1 = new Arc(-490, -50, 0, filletRadius, Utility.DegToRad(90), Utility.DegToRad(180));
Line l1 = new Line(-540, -50, -540, -600);
Arc a2 = new Arc(0, 910, 0, 1500, Utility.DegToRad(225), Utility.DegToRad(315));
Curve.Fillet(l1, a2, filletRadius, false, false, true, true, out Arc f1);

Line l2 = new Line(+540, -600, +540, -50);
Curve.Fillet(a2, l2, filletRadius, false, false, true, true, out Arc f2);

Arc a3 = new Arc(+490, -50, 0, filletRadius, Utility.DegToRad(0), Utility.DegToRad(90));
Line l3 = new Line(490, 0, -490, 0);

CompositeCurve tableContour = new CompositeCurve(a1, l1, f1, a2, f2, l2, a3, l3);
Brep table = new devDept.Eyeshot.Entities.Region(tableContour, Plane.XY, false).ExtrudeAsBrep(70);
table.Translate(365, 420, 625);

CompositeCurve wallOuter = new CompositeCurve(
    new Line(0, 0, 0, 80, 0, 0),
    new Line(80, 0, 0, 80, 310, 0),
    new Arc(110, 310, 0, 30, Math.PI, Math.PI / 2),
    new Line(110, 340, 0, 620, 340, 0),
    new Arc(620, 310, 0, 30, Math.PI / 2, 0),
    new Line(650, 310, 0, 650, 0, 0),
    new Line(650, 0, 0, 730, 0, 0),
    new Line(730, 0, 0, 730, 390, 0),
    new Arc(700, 390, 0, 30, 0, Math.PI / 2),
    new Line(700, 420, 0, 30, 420, 0),
    new Arc(30, 390, 0, 30, Math.PI / 2, Math.PI),
    new Line(0, 390, 0, 0, 0, 0));

Brep wall = new devDept.Eyeshot.Entities.Region(wallOuter, Plane.XY, false).ExtrudeAsBrep(300);

devDept.Eyeshot.Entities.Region ssr1 = devDept.Eyeshot.Entities.Region.CreateSlot(Plane.YZ, 0, 130, 280, 10);
ssr1.Translate(60, 0, 0);
wall.ExtrudeRemovePattern(ssr1, 610, 0, 1, 60, 3);
wall.Translate(0, 0, 695);

model1.Entities.Add(basement);
model1.Entities.Add(table, model1.Layers[0].Name, Color.Crimson);
model1.Entities.Add(wall);
