devDept.Eyeshot.Entities.Region front = devDept.Eyeshot.Entities.Region.CreatePolygon(Plane.XZ, new Point2D[]{
new Point2D(-120,0),
new Point2D(-150,0),
new Point2D(-150,-60),
new Point2D(-134,-60),
new Point2D(-134,-25),
new Point2D(-120,-25),
});
front.Translate(0, 38);
Brep ext1 = front.ExtrudeAsBrep(76);
devDept.Eyeshot.Entities.Region rect = devDept.Eyeshot.Entities.Region.CreatePolygon(Plane.XY, new Point2D[]{
new Point2D(0,20),
new Point2D(-120,20),
new Point2D(-120,-20),
new Point2D(0,-20)
});
ext1.ExtrudeAdd(rect, -20);
Circle c1 = new Circle(Plane.YZ, new Point2D(+20, -50), 6.5);
Circle c2 = new Circle(Plane.YZ, new Point2D(-20, -50), 6.5);
devDept.Eyeshot.Entities.Region r1 = new devDept.Eyeshot.Entities.Region(c1);
devDept.Eyeshot.Entities.Region r2 = new devDept.Eyeshot.Entities.Region(c2);
ext1.ExtrudeRemove(r1, -150);
ext1.ExtrudeRemove(r2, -150);
double angle = 2 * Math.PI / 3.0;
double x = -105 + (20 + Math.Abs(20 * Math.Cos(angle)));
double z = 20 + Math.Abs(20 * Math.Sin(angle));
Circle c3 = new Circle(Plane.XZ, new Point2D(-85, 20), 10);
CompositeCurve upCurve = new CompositeCurve(
new Line(0, 0, 0, -105, 0, 0),
new Line(-105, 0, 0, -105, 0, 20),
new Arc(Plane.XZ, new Point3D(-85, 0, 20), 20, Math.PI / 3.0, Math.PI),
new Line(x, 0, z, 0, 0, 0)
);
devDept.Eyeshot.Entities.Region upBlock = new devDept.Eyeshot.Entities.Region(upCurve, c3);
ext1.ExtrudeAdd(upBlock, new Interval(-8, 8));
int[] faces = { 2, 4, 8, 11, 12, 19, 10 };
foreach (int item in faces)
{
ext1.Faces[item].Color = Color.LightGray;
}
design1.Entities.Add(ext1, Color.Red);

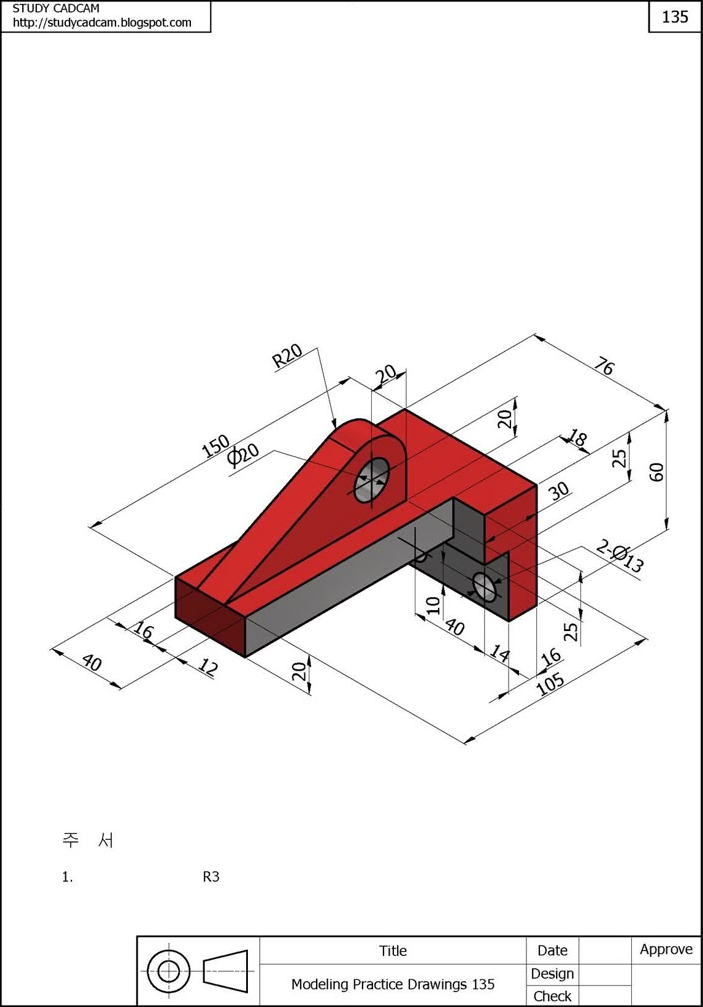

Modeling Practice Drawings 135
Davide Angiolini
