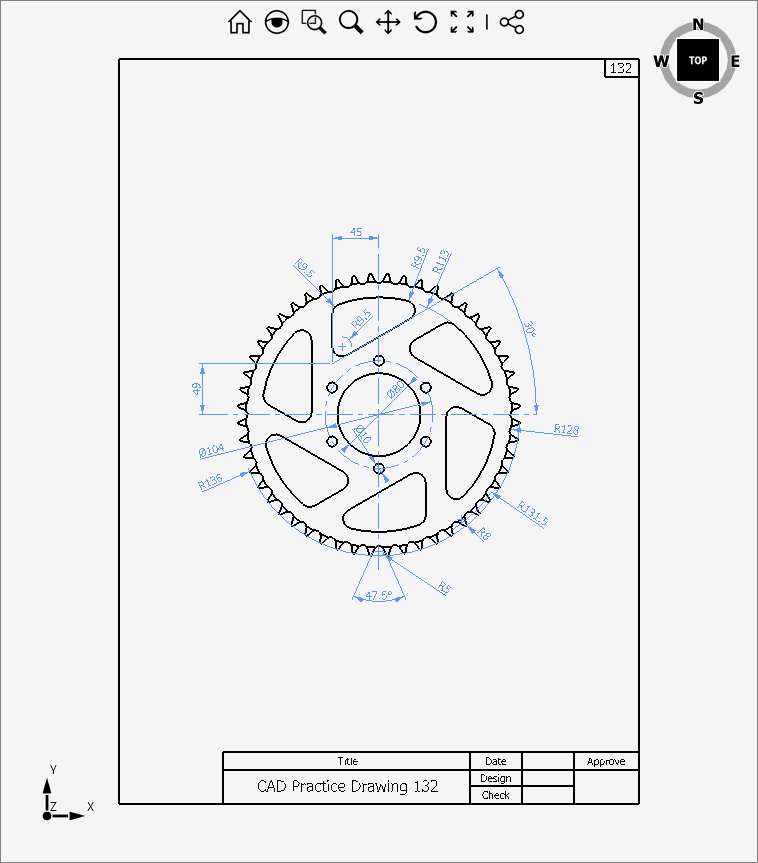

// Define layer names and text size.
const string Dim = "Dimension", DashDot = "DashDot";
const double TextHeight = 8.0;
// Adding different layers
design1.Layers.Add(new Layer(Dim, Color.CornflowerBlue));
design1.Layers[0].LineWeight = 2;
design1.LineTypes.Add(DashDot, new float[] { 10, -2, 2, -2 });
// X and Y axes
Line axisX = new Line(-170, 0, 150, 0);
axisX.LineTypeMethod = colorMethodType.byEntity;
axisX.LineTypeName = DashDot;
design1.Entities.Add(axisX, Dim);
Line axisY = new Line(0, -150, 0, 170);
axisY.LineTypeMethod = colorMethodType.byEntity;
axisY.LineTypeName = DashDot;
design1.Entities.Add(axisY, Dim);
// center circle
Circle centerCircle = new Circle(0, 0, 0, 40);
design1.Entities.Add(centerCircle);
DiametricDim diamDimCC = new DiametricDim(centerCircle, new Point2D(20, 20), TextHeight);
design1.Entities.Add(diamDimCC, Dim);
// screw holes circles
Circle shCircle = new Circle(0, 0, 0, 52);
shCircle.LineTypeMethod = colorMethodType.byEntity;
shCircle.LineTypeName = DashDot;
design1.Entities.Add(shCircle, Dim);
DiametricDim diamDimSC = new DiametricDim(shCircle, new Point2D(-160, -40), TextHeight);
design1.Entities.Add(diamDimSC, Dim);
Circle smallCircle = new Circle(0, 52, 0, 5);
for (int i = 0; i < 6; i++)
{
Circle circle = (Circle)smallCircle.Clone();
circle.Rotate((Math.PI / 3) * i, Vector3D.AxisZ);
design1.Entities.Add(circle);
}
DiametricDim diamDimSmallCircle = new DiametricDim(new Circle(0, -52, 0, 5), new Point2D(-20, 30), TextHeight, Plane.XY);
design1.Entities.Add(diamDimSmallCircle, Dim);
//six composite curve
Arc arc = new Arc(0, 0, 0, 113, (Math.PI / 3), (Math.PI * 2 / 3));
design1.Entities.Add(new Arc(arc.Center, 113, devDept.Geometry.Utility.DegToRad(45), devDept.Geometry.Utility.DegToRad(70)), Dim);
Line line1 = new Line(-45, 113, -45, 0);
Line line2 = new Line(-45, 49, 55, 49);
line2.Rotate(devDept.Geometry.Utility.DegToRad(30), Vector3D.AxisZ, new Point3D(-45, 49));
design1.Entities.Add((Line)line2.Clone(), Dim);
Arc arcFillet1, arcFillet2, arcFillet3;
Curve.Fillet(arc, line1, 9.5, false, false, true, true, out arcFillet1);
Curve.Fillet(arc, line2, 9.5, false, false, true, true, out arcFillet2);
Curve.Fillet(line1, line2, 9.5, false, false, true, true, out arcFillet3);
CompositeCurve compositeCurve = new CompositeCurve(arc, line1, line2, arcFillet1, arcFillet2, arcFillet3);
for (int i = 0; i < 6; i++)
{
CompositeCurve compCurve = (CompositeCurve)compositeCurve.Clone();
compCurve.Rotate((Math.PI / 3) * i, Vector3D.AxisZ);
design1.Entities.Add(compCurve);
}
RadialDim rDim = new RadialDim(arc, new Point2D(65, 145), TextHeight)
{
ArrowsLocation = elementPositionType.Outside,
TrimLeader = true,
CenterMarkSize = 0
};
design1.Entities.Add(rDim, Dim);
Line axisXClone = (Line)axisX.Clone();
AngularDim angDim = new AngularDim(Plane.XY, axisXClone, line2, new Point3D(160, 60, 0), new Point3D(140, 80, 0), TextHeight);
design1.Entities.Add(angDim, Dim);
// arcFillet dimension
Arc copy = (Arc)arcFillet1.Clone();
copy.Rotate(devDept.Geometry.Utility.DegToRad(250), Vector3D.AxisZ, copy.Plane.Origin);
rDim = new RadialDim(copy, new Point2D(-40, 40), TextHeight)
{
ArrowsLocation = elementPositionType.Outside,
TrimLeader = true,
CenterMarkSize = 0
};
design1.Entities.Add(rDim, Dim);
copy = (Arc)arcFillet2.Clone();
copy.Rotate(devDept.Geometry.Utility.DegToRad(280), Vector3D.AxisZ, copy.Plane.Origin);
rDim = new RadialDim(copy, new Point2D(15, 50), TextHeight)
{
ArrowsLocation = elementPositionType.Outside,
TrimLeader = true,
CenterMarkSize = 0
};
design1.Entities.Add(rDim, Dim);
copy = (Arc)arcFillet3.Clone();
copy.Rotate(devDept.Geometry.Utility.DegToRad(180), Vector3D.AxisZ, copy.Plane.Origin);
rDim = new RadialDim(copy, new Point2D(10, 10), TextHeight)
{
ArrowsLocation = elementPositionType.Outside,
TrimLeader = true
};
design1.Entities.Add(rDim, Dim);
design1.Entities.Add(new Arc(copy.Center, 9.5, Math.PI / 2), Dim);
// Draw Teeth
const int teethNumber = 52;
Circle df = new Circle(0, 0, 0, 128);
RadialDim rDim1 = new RadialDim(df, new Point2D(180, -20), TextHeight)
{
ArrowsLocation = elementPositionType.Outside,
TrimLeader = true
};
design1.Entities.Add(rDim1, Dim);
design1.Entities.Add(new Arc(df.Center, 128, -0.15, -0.1), Dim);
Circle d = new Circle(0, 0, 0, 131.5);
rDim1 = new RadialDim(d, new Point2D(145, -100), TextHeight)
{
ArrowsLocation = elementPositionType.Outside,
TrimLeader = true
};
design1.Entities.Add(rDim1, Dim);
design1.Entities.Add(new Arc(d.Center, 131.5, -1, -0.6), Dim);
Circle MR = new Circle(0, 0, 0, 136);
rDim1 = new RadialDim(MR, new Point2D(-160, -70), TextHeight)
{
ArrowsLocation = elementPositionType.Outside,
TrimLeader = true
};
design1.Entities.Add(rDim1, Dim);
design1.Entities.Add(new Arc(MR.Center, 136, -2.75, -0.05), Dim);
// Tooth composed by line1, internalArc, line2, extArc
// calculation of extArc
double rad = devDept.Geometry.Utility.DegToRad(180 - 47.5);
Arc internalArc = new Arc(0, -131.5, 0, 5, devDept.Geometry.Utility.PI_2 - rad / 2, devDept.Geometry.Utility.PI_2 + rad / 2);
rDim1 = new RadialDim(internalArc, new Point2D(60, -40), TextHeight)
{
ArrowsLocation = elementPositionType.Outside,
TrimLeader = true
};
design1.Entities.Add(rDim1, Dim);
design1.Entities.Add(new Arc(internalArc.Center, 5, devDept.Geometry.Utility.DegToRad(-80), devDept.Geometry.Utility.DegToRad(-10)), Dim);
// calculatation of line 1 and 2
Line ln1 = new Line(internalArc.StartPoint, internalArc.StartPoint + internalArc.StartTangent * -20);
Line ln2 = new Line(internalArc.EndPoint, internalArc.EndPoint + internalArc.EndTangent * 20);
AngularDim angDim1 = new AngularDim(Plane.XY,
new Line(internalArc.StartPoint, internalArc.StartPoint + internalArc.StartTangent * -1),
new Line(internalArc.EndPoint, internalArc.EndPoint + internalArc.EndTangent * 1),
new Point3D(0, -180, 0), new Point3D(0, -180, 0), TextHeight);
design1.Entities.Add(angDim1, Dim);
ln1.Reverse();
ln1.TrimBy(MR.IntersectWith(ln1)[0], true);
ln2.TrimBy(MR.IntersectWith(ln2)[0], false);
// calculation of extArc
var nextl1 = (Line)ln1.Clone();
nextl1.Rotate(-devDept.Geometry.Utility.TWO_PI / teethNumber, Vector3D.AxisZ);
var seg = new Segment2D(ln2.EndPoint, nextl1.StartPoint);
var radius = 8;
var h = Math.Sqrt((radius * radius) - ((seg.Length / 2) * (seg.Length / 2)));
var midPoint = seg.MidPoint;
Vector3D vector = Vector3D.Cross(new Vector3D(ln2.EndPoint, nextl1.StartPoint), Vector3D.AxisZ); // vector perpendicular to the segment
vector.Length = h;
var center = midPoint + vector;
Arc extArc = new Arc(Plane.XY, center, nextl1.StartPoint, ln2.EndPoint);
Arc copy1 = (Arc)extArc.Clone();
copy1.Rotate(devDept.Geometry.Utility.TWO_PI / teethNumber * 6, Vector3D.AxisZ);
rDim1 = new RadialDim(copy1, new Point2D(10, -10), TextHeight, Plane.XY)
{
ArrowsLocation = elementPositionType.Outside,
TrimLeader = true
};
design1.Entities.Add(rDim1, Dim);
extArc.Reverse();
CompositeCurve cc = new CompositeCurve(internalArc, ln1, ln2, extArc);
CompositeCurve nextCC = (CompositeCurve)cc.Clone();
nextCC.Rotate((2 * Math.PI / teethNumber), Vector3D.AxisZ);
Arc arcdf = new Arc(new Point3D(0, 0, 0), cc.IntersectWith(df)[1], nextCC.IntersectWith(df)[0]);
for (int i = 0; i < teethNumber; i++)
{
CompositeCurve compCurve = (CompositeCurve)cc.Clone();
Arc arcdfi = (Arc)arcdf.Clone();
compCurve.Rotate((2 * Math.PI / teethNumber) * i, Vector3D.AxisZ);
arcdfi.Rotate((2 * Math.PI / teethNumber) * i, Vector3D.AxisZ);
design1.Entities.Add(compCurve);
design1.Entities.Add(arcdfi);
}
// Linear Dimension
Plane dim1Plane = new Plane(Point3D.Origin, Vector3D.AxisY, -1 * Vector3D.AxisX);//Plane.XY;
design1.Entities.Add(new LinearDim(dim1Plane, new Point2D(0, 160), new Point2D(49, 45), new Point2D(25, 170), TextHeight), Dim);
design1.Entities.Add(new LinearDim(Plane.XY, new Point2D(-45, 49), new Point2D(0, 160), new Point2D(-22, 170), TextHeight), Dim);
// Center figure into frame
const double scale = 0.4;
design1.Entities.Scale(scale);
design1.Entities.Translate(100, 150);
foreach (Entity en in design1.Entities)
{
if (en is Dimension dm)
{
// Restore original measure
dm.LinearScale = 1 / scale;
}
}
design1.Entities.Regen();
DrawFrame();
// Top View
design1.SetView(viewType.Top);
design1.ZoomFit();
Print();Frame drawing:
void DrawFrame()
{
const double height = 287;
const double width = 200;
const string FrameLayer = "FrameLayer";
design1.Layers.Add(new Layer(FrameLayer));
design1.Layers[FrameLayer].LineWeight = 2;
// Outer box
DrawMainBox(FrameLayer, height, width);
// Boxes with info
DrawInfoBox(FrameLayer, FrameLayer, width);
// Text within info boxes
DrawText("CAD Practice Drawing 132", width);
// Top box with number
DrawNumberBox(132, FrameLayer, FrameLayer, height, width);
}
void DrawMainBox(string frameLayerName, double height, double width)
{
Line line = new(0, height, width, height);
design1.Entities.Add(line, frameLayerName);
line = new Line(0, height, 0, 0);
design1.Entities.Add(line, frameLayerName);
line = new Line(0, 0, width, 0);
design1.Entities.Add(line, frameLayerName);
line = new Line(width, 0, width, height);
design1.Entities.Add(line, frameLayerName);
}
void DrawNumberBox(int number, string frameLayerName, string frameTextLayerName, double height, double width)
{
Line line = new(width - 13, height - 7, width, height - 7);
design1.Entities.Add(line, frameLayerName);
line = new Line(width - 13, height, width - 13, height - 7);
design1.Entities.Add(line, frameLayerName);
Text text = new(width - 6.75, height - 3.5, 0, number.ToString(), 4, devDept.Eyeshot.Entities.Text.alignmentType.MiddleCenter);
design1.Entities.Add(text, frameTextLayerName);
}
private void DrawInfoBox(string frameLayerName, string frameTextLayerName, double width)
{
Line line = new(width - 160, 0, width - 160, 20);
design1.Entities.Add(line, frameLayerName);
line = new Line(width - 160, 20, width, 20);
design1.Entities.Add(line, frameLayerName);
// Using frameTextLayerName to have thinner lines
line = new Line(width - 65, 0, width - 65, 20);
design1.Entities.Add(line, frameTextLayerName);
line = new Line(width - 160, 13, width, 13);
design1.Entities.Add(line, frameTextLayerName);
line = new Line(width - 45, 0, width - 45, 20);
design1.Entities.Add(line, frameTextLayerName);
line = new Line(width - 25, 0, width - 25, 20);
design1.Entities.Add(line, frameTextLayerName);
line = new Line(width - 65, 7, width - 25, 7);
design1.Entities.Add(line, frameTextLayerName);
}
void DrawText(string title, double width)
{
Text text = new(width - 112, 16.5, 0, "Title", 3, devDept.Eyeshot.Entities.Text.alignmentType.MiddleCenter);
design1.Entities.Add(text);
text = new Text(width - 112, 7, 0, title, 4.5, devDept.Eyeshot.Entities.Text.alignmentType.MiddleCenter);
design1.Entities.Add(text);
text = new Text(width - 55, 16.5, 0, "Date", 3, devDept.Eyeshot.Entities.Text.alignmentType.MiddleCenter);
design1.Entities.Add(text);
text = new Text(width - 55, 10, 0, "Design", 3, devDept.Eyeshot.Entities.Text.alignmentType.MiddleCenter);
design1.Entities.Add(text);
text = new Text(width - 55, 3.5, 0, "Check", 3, devDept.Eyeshot.Entities.Text.alignmentType.MiddleCenter);
design1.Entities.Add(text);
text = new Text(width - 12.5, 16.5, 0, "Approve", 3, devDept.Eyeshot.Entities.Text.alignmentType.MiddleCenter);
design1.Entities.Add(text);
}Printing on A4 paper sheet:
private async void Print()
{
// A4 size in hundredth of inches
PaperSize paperSize = new System.Drawing.Printing.PaperSize("A4", 826, 1169);
design1.PageSetup(true, false, 0, paperSize, false);
// creates printing setting object and customize it
HiddenLinesViewSettingsEx hdlS = new HiddenLinesViewSettingsEx(viewType.Top, design1.Document);
hdlS.KeepEntityLineWeight = true;
// creates paper preview
const double printScaling = 1;
HiddenLinesViewOnPaperPreview hdl = new HiddenLinesViewOnPaperPreview(hdlS, new Size(800, 600), printScaling);
await design1.DoWorkAsync(hdl);
}
