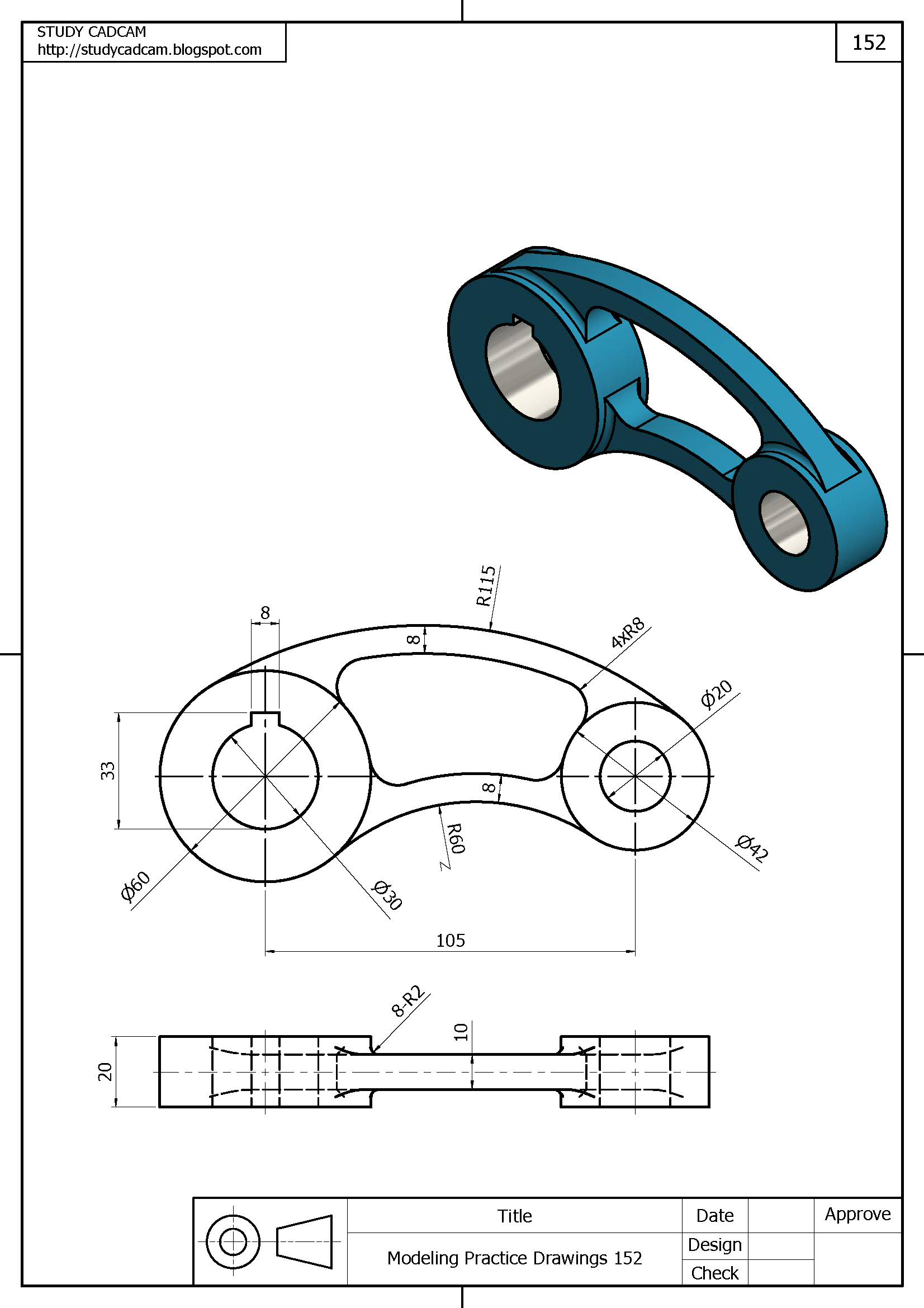

Modeling Practice Drawings 152



Circle c1 = new Circle(new Point3D(0, 0), 30);
Circle c2 = new Circle(new Point3D(105, 0), 21);
devDept.Eyeshot.Entities.Region creg1 = new devDept.Eyeshot.Entities.Region(c1, Plane.XY); devDept.Eyeshot.Entities.Region creg2 = new devDept.Eyeshot.Entities.Region(c2, Plane.XY);
Arc l1top = (Arc) UtilityEx.GetCirclesTangentToTwoCircles(c1, c2,115,true)[3]; Arc l1bottom = new Arc(l1top.Center, l1top.Radius - 8, l1top.AngleInRadians); l1bottom.Rotate(Utility.DegToRad(45), Vector3D.AxisZ, l1top.Center); Arc l2bottom = (Arc) UtilityEx.GetCirclesTangentToTwoCircles(c1, c2, 60, true)[1]; Arc l2top = new Arc(l2bottom.Center, l2bottom.Radius + 8, l2bottom.AngleInRadians); l2top.Rotate(Utility.DegToRad(60), Vector3D.AxisZ, l2bottom.Center); Arc racctop1 = (Arc) UtilityEx.GetCirclesTangentToTwoCircles(l1bottom, c1, 8, true)[2]; Arc racctop2 = (Arc)UtilityEx.GetCirclesTangentToTwoCircles(l1bottom, c2, 8, true)[2]; l1bottom.TrimBy(racctop1.StartPoint, false); l1bottom.TrimBy(racctop2.StartPoint, true); Arc raccbottom1 = (Arc)UtilityEx.GetCirclesTangentToTwoCircles(l2top, c1, 8, true)[0]; Arc raccbottom2 = (Arc)UtilityEx.GetCirclesTangentToTwoCircles(l2top, c2, 8, true)[0]; l2top.TrimBy(raccbottom1.StartPoint,false); l2top.TrimBy(raccbottom2.StartPoint, true); Brep ext1 = creg1.ExtrudeAsBrep(20); model1.Backface.ColorMethod = backfaceColorMethodType.SingleColor; Arc raccraccleft = (Arc)UtilityEx.GetCirclesTangentToTwoCircles(racctop1,raccbottom1,30,true)[0]; Arc raccraccright = (Arc)UtilityEx.GetCirclesTangentToTwoCircles(racctop2, raccbottom2, 21, true)[0]; CompositeCurve cc1 = new CompositeCurve( l1top, new Line(l1top.StartPoint,c1.Center), new Line(c1.Center, l2bottom.StartPoint), l2bottom, new Line(l2bottom.EndPoint, c2.Center), new Line(c2.Center, l1top.EndPoint)); devDept.Eyeshot.Entities.Region cr1 = new devDept.Eyeshot.Entities.Region(cc1, Plane.XY); ext1.ExtrudeAdd(cr1, new Interval(5, 15)); ext1.ExtrudeAdd(creg2,20); devDept.Eyeshot.Entities.Region ec1 = devDept.Eyeshot.Entities.Region.CreateCircle(105, 0, 10); ext1.ExtrudeRemove(ec1, new Interval(-20, 20)); Circle c3 = new Circle(new Point3D(0,0),15); Line l1 = new Line(-4, 16.5, 4, 16.5); Line l2 = new Line(-4, 0, -4, 16.5); Line l3 = new Line(4, 0, 4, 16.5); Point3D p2 = Curve.Intersection(c3,l2)[0]; Point3D p3 = Curve.Intersection(c3, l3)[0]; l2.StartPoint = p2; l3.StartPoint = p3; Arc a3 = new Arc(Plane.XY, new Point3D(0, 0), p2, p3); CompositeCurve cc2 = new CompositeCurve( l1, l2, l3, a3);
devDept.Eyeshot.Entities.Region cr2 = new devDept.Eyeshot.Entities.Region(cc2, Plane.XY); ext1.ExtrudeRemove(cr2, new Interval(-20, 20)); CompositeCurve cc3 = new CompositeCurve( l1bottom, racctop2, raccraccright, raccbottom2, l2top, raccbottom1, raccraccleft, racctop1);
devDept.Eyeshot.Entities.Region cr3 = new devDept.Eyeshot.Entities.Region(cc3, Plane.XY); ext1.ExtrudeRemove(cr3, new Interval(-20, 20)); model1.Entities.Add(ext1, model1.Layers[0].Name, Color.OliveDrab); //------------------------------DRAWINGS ENVIRONMENT------------------------------------------------ // Creating a new sheet Sheet sheet1 = new Sheet(linearUnitsType.Millimeters, 220, 297, "Sheet 1"); // Getting the title block for A3 Iso standard format BlockReference br = sheet1.BuildA4ISO(out Block a4Block, "A4_ISO"); // Initializing title block's attributes br.Attributes["Title"] = new AttributeReference("My First Sheet"); br.Attributes["Format"] = new AttributeReference("A4"); br.Attributes["DwgNo"] = new AttributeReference("Root"); br.Attributes["Scale"] = new AttributeReference("SCALE: 1:2"); br.Attributes["Sheet"] = new AttributeReference("SHEET 1 OF 1"); // Adding the block related to the title block to the Blocks collection drawings1.Blocks.Add(a4Block); // Adding its reference to the sheet sheet1.Entities.Add(br); // Adding the sheet to the Sheets collection drawings1.Sheets.Add(sheet1); // Setitng the sheet as the active one drawings1.ActiveSheet = sheet1; // Refreshing the control drawings1.Invalidate(); Point2D p1 = new Point2D(107.5, 87); Point2D p4 = new Point2D(125, 232); Point2D p5 = new Point2D(107.5, 160); VectorView vectorViewT = new VectorView(p5.X, p5.Y, viewType.Top, .5, "Top Vector View") { HiddenSegments = true }; VectorView vectorViewR = new VectorView(p1.X, p1.Y, viewType.Rear, .5, "Back Vector View") { HiddenSegments = true }; RasterView rasterView = new RasterView(p4.X, p4.Y, viewType.Trimetric, .5, "Trimetric Raster View"); //Adding view's placeholders sheet1.AddViewPlaceHolder(vectorViewT, model1, drawings1, "Top Vector View"); sheet1.AddViewPlaceHolder(vectorViewR, model1, drawings1, "Bottom Vector View"); sheet1.AddViewPlaceHolder(rasterView, model1, drawings1, "Trimetric Raster View"); //Setting up the layers const string Dim = "Dim"; const string Text = "Text"; drawings1.Layers.Add(Dim); drawings1.Layers[8].LineWeight = 0.2f; drawings1.Layers[8].Color = Color.DarkBlue; drawings1.Layers.Add(Text); drawings1.Layers[9].LineWeight = 0.5f; drawings1.Layers[9].Color = Color.Black; //Text Text t2 = new Text(0, 75, 0, "Top View", 8, devDept.Eyeshot.Entities.Text.alignmentType.MiddleCenter); drawings1.Blocks[2].Entities.Add(t2, Text); Text t3 = new Text(0, 30, 0, "Back View", 8, devDept.Eyeshot.Entities.Text.alignmentType.MiddleCenter); drawings1.Blocks[3].Entities.Add(t3, Text); //Adding Top View Dimensions to the scene Point2D p0T = new Point3D(-10, -40); Point2D p1T = new Point3D(10, -40); drawings1.Blocks[3].Entities.Add(new LinearDim(new Plane(Point3D.Origin, Vector3D.AxisY, Vector3D.AxisMinusX), p0T, p1T, new Point3D(0, -100), 6), Dim); drawings1.Blocks[2].Entities.Add(new LinearDim(Plane.XY, new Point3D(-52.5 + 4.5, -5.5), new Point3D(52.5 + 4.5, -5.5), new Point3D(0, -70), 6), Dim); drawings1.Rebuild(model1); AddRadiusesData(2);
private void AddRadiusesData(int block)
{
Random rnd = new Random(); Dictionary<int, int> radd = new Dictionary<int, int>(); for (int i = 0; i < drawings1.Blocks[block].Entities.Count; i++) { if (drawings1.Blocks[block].Entities[i] is Arc arc) { double startAngle = arc.Domain.Low; double endAngle = arc.Domain.High; double Finalangle = (startAngle + endAngle) / 2 + rnd.NextDouble() * arc.Radius / 100 * 5; if (Finalangle < startAngle) Finalangle = startAngle; else if (Finalangle > endAngle) Finalangle = endAngle; if (!radd.ContainsKey(Convert.ToInt32(arc.Radius))) { radd[Convert.ToInt32(arc.Radius)] = Convert.ToInt32(arc.Radius); drawings1.Blocks[block].Entities.Add(new RadialDim(arc, new Point3D(arc.Center.X + Math.Cos(Finalangle) * arc.Radius * 1.2, arc.Center.Y + Math.Sin(Finalangle) * arc.Radius * 1.2), 6) { ArrowsLocation = elementPositionType.Outside, TrimLeader = true, CenterMarkSize = 0 }, "Dim"); } } } }
