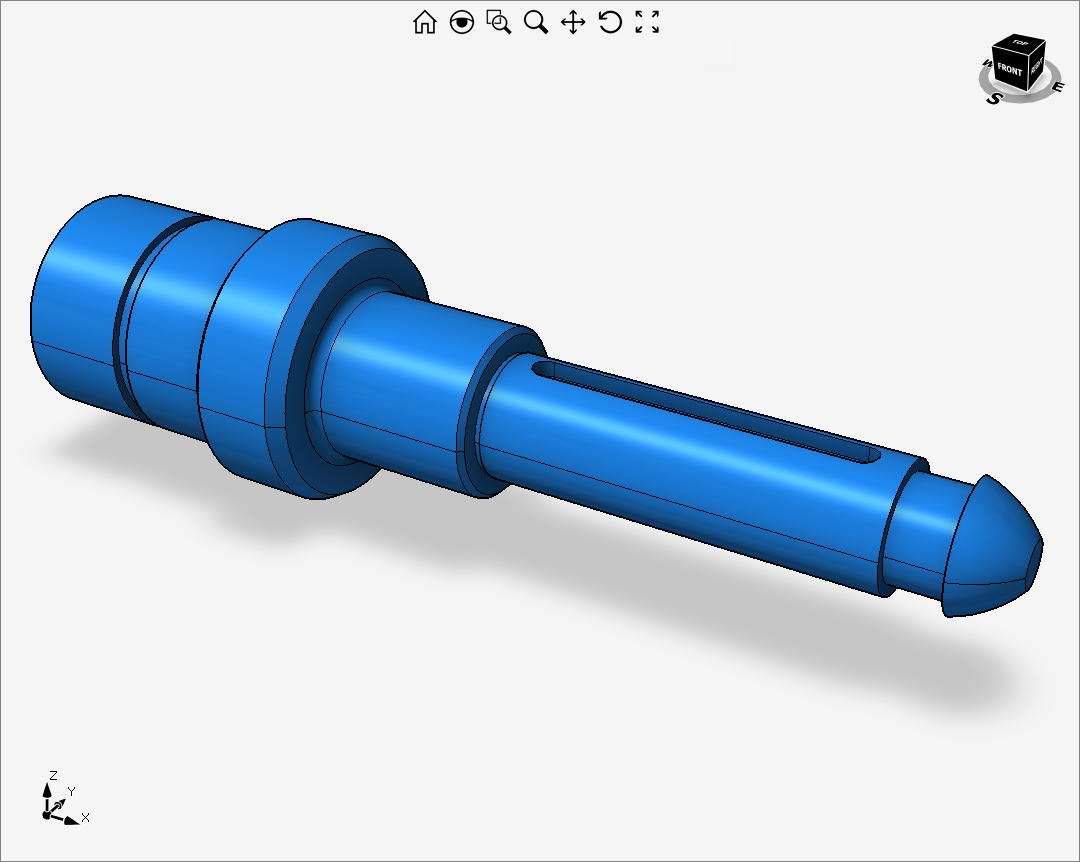

Shaft


CompositeCurve cc1 = new CompositeCurve(
    new Line(0, 0, 0, -19),
    new Line(0, -19, 1, -20),
    new Line(1, -20, 20.5, -20),
    new Line(20.5, -20, 20.5, -18.5),
    new Line(20.5, -18.5, 23.5, -18.5),
    new Line(23.5, -18.5, 23.5, -20),
    new Line(23.5, -20, 42, -20),
    new Line(42, -20, 42, -23),
    new Line(42, -23, 43, -24),
    new Line(43, -24, 57, -24),
    new Line(57, -24, 60, -22.2679492),
    new Line(60, -22.2679492, 60, -17),
    new Arc(62, -17, 0, 2, Utility.DegToRad(180), Utility.DegToRad(90)),
    new Line(62, -15, 89, -15),
    new Line(89, -15, 90, -14),
    new Line(90, -14, 90, -10.8),
    new Line(90, -10.8, 91, -10.8),
    new Line(91, -10.8, 91, -11),
    new Line(91, -11, 160, -11),
    new Line(160, -11, 160, -9),
    new Line(160, -9, 170, -9),
    new Line(170, -9, 170, -11),
    new Arc(Plane.XY, new Point2D(170, -11), new Point2D(175, -8.65), new Point2D(180, -4), false),
    new Line(180, -4, 180, 0));

Brep rev1 = cc1.RevolveAsBrep(0, Utility.DegToRad(360), Vector3D.AxisX, Point3D.Origin);
devDept.Eyeshot.Entities.Region ssr1 = devDept.Eyeshot.Entities.Region.CreateSlot(55, 2.5);
ssr1.Translate(97.5, 0, 8);
rev1.ExtrudeRemove(ssr1, 10);

devDept.Eyeshot.Entities.Region r1 = devDept.Eyeshot.Entities.Region.CreatePolygon(Plane.XY, new Point2D[]{
    new Point2D(0, 0),
    new Point2D(0, -11),
    new Point2D(33, -11),
    new Point2D(33, -14.5),
    new Point2D(45, -14.5),
    new Point2D(53.3715789, 0)});

rev1.RevolveRemove(r1, Utility.DegToRad(360), Vector3D.AxisX, Point3D.Origin);

devDept.Eyeshot.Entities.Region rr1 = devDept.Eyeshot.Entities.Region.CreateRectangle(Plane.YZ, 6, 28, true);
rev1.ExtrudeRemove(rr1, 35);
model1.Entities.Add(rev1, model1.Layers[0].Name, Color.DodgerBlue);
