CompositeCurve cc1 = new CompositeCurve(
new Line(-6, -13.5, -6, -21),
new Arc(-4.5, -21, 0, 1.5, Utility.DegToRad(180), Utility.DegToRad(270)),
new Line(-4.5, -22.5, -1.5, -22.5),
new Arc(-1.5, -24, 0, 1.5, Utility.DegToRad(90), 0),
new Line(0, -24, 0, -80),
new Line(0, -80, 15, -80),
new Line(15, -80, 15, -24),
new Arc(16.5, -24, 0, 1.5, Utility.DegToRad(180), Utility.DegToRad(90)),
new Line(16.5, -22.5, 34.5, -22.5),
new Arc(34.5, -21, 0, 1.5, Utility.DegToRad(270), Utility.DegToRad(360)),
new Line(36, -21, 36, -13.5),
new Line(36, -13.5, -6, -13.5));
Brep rev1 = cc1.RevolveAsBrep(0, Utility.DegToRad(360), Vector3D.AxisX, Point3D.Origin);
devDept.Eyeshot.Entities.Region cr1 = devDept.Eyeshot.Entities.Region.CreateCircle(Plane.YZ, 0, 92, 33);
rev1.ExtrudeRemovePattern(cr1, 20, Vector3D.AxisX, Point3D.Origin, Utility.DegToRad(60), 6);
devDept.Eyeshot.Entities.Region ssr1 = devDept.Eyeshot.Entities.Region.CreateSlot(Plane.YZ, 45, 0, 50, 9);
rev1.ExtrudeRemovePattern(ssr1, 20, Vector3D.AxisX, Point3D.Origin, Utility.DegToRad(60), 6);
devDept.Eyeshot.Entities.Region cr = devDept.Eyeshot.Entities.Region.CreateCircle(Plane.XZ, 22.5, 0, 3.25);
rev1.ExtrudeRemove(cr, new Interval(-25, 25));
design1.Entities.Add(rev1, Color.LightCoral);

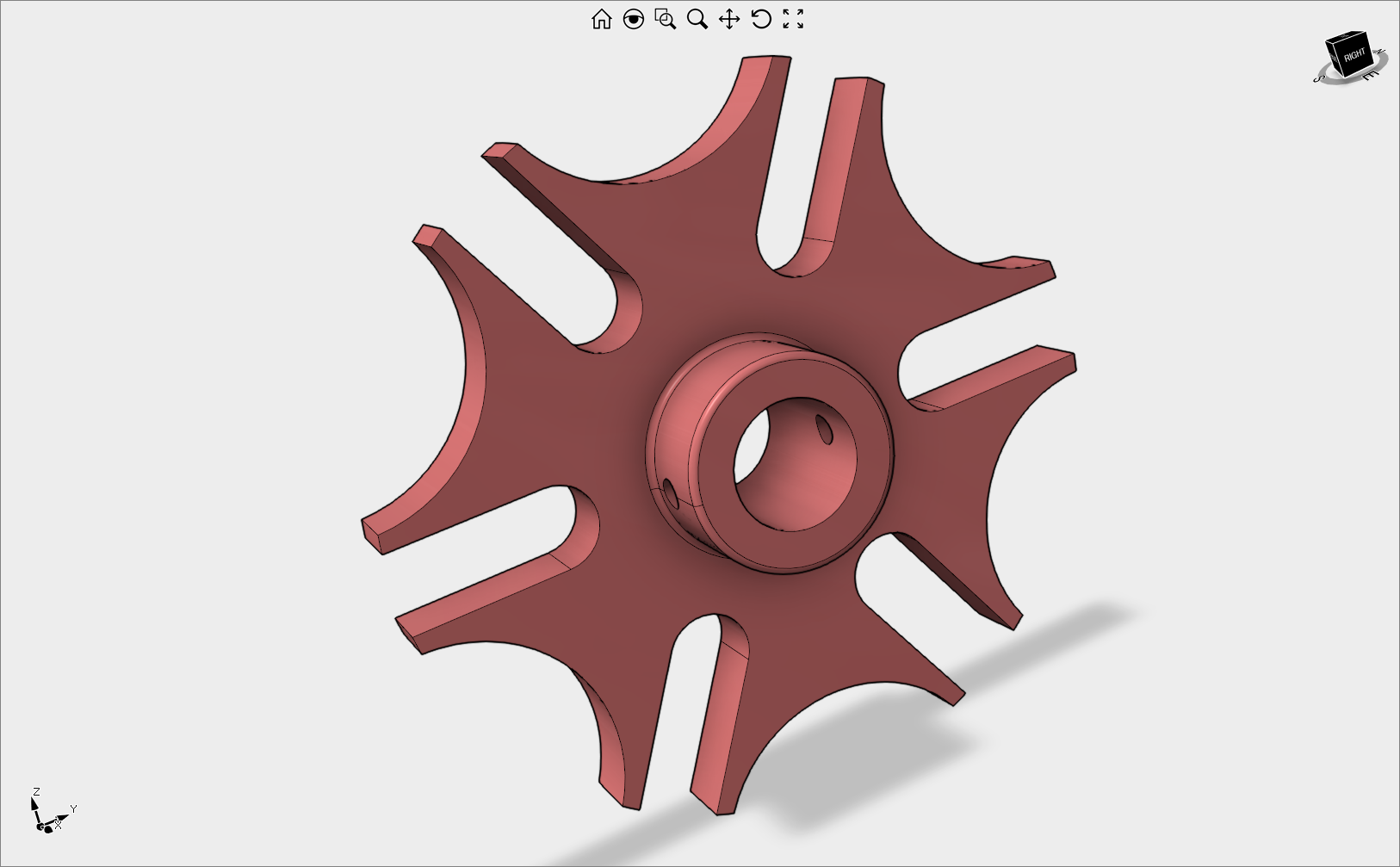

Maltese Cross
