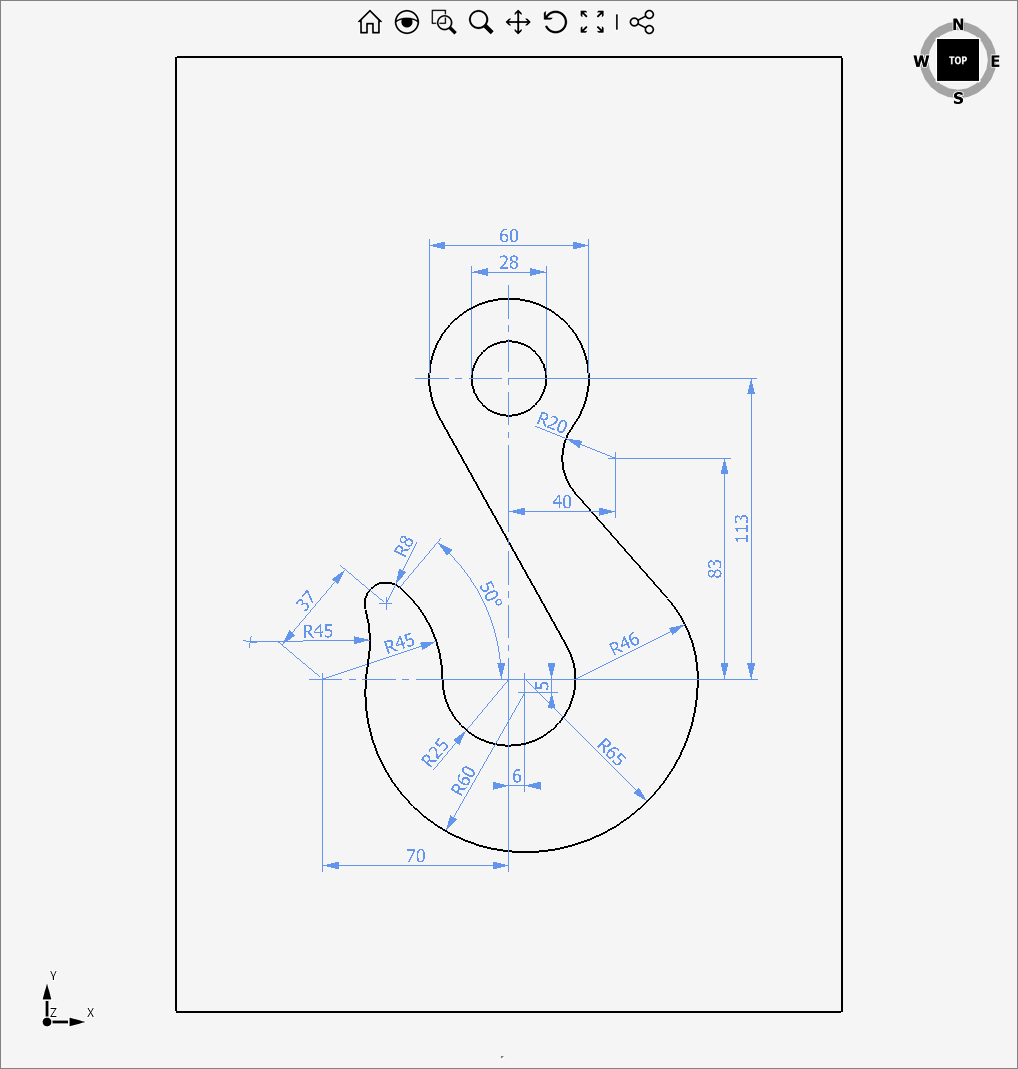

Hook


Let us define some useful constants first:

private const string
dimLayer = "Dimension",
thinLayer = "ThinLayer",
dashDot = "DashDot";

private const double textHeight = 5;

private const float defaultLineWeight = 2;

Here is the primary function:

void hook()
{
    hookSetup();
    hookFrame();
    hookDrawing();

    design1.SetView(viewType.Top);
    design1.ZoomFit();
}

Here goes our setup function:

void hookSetup()
{
    design1.Layers[0].LineWeight = defaultLineWeight;
    design1.Layers.Add(dimLayer, Color.CornflowerBlue);
    design1.Layers.Add(thinLayer, Color.Gray);
    design1.LineTypes.Add(dashDot, new float[] { 15f, -5f, 1f, -5f });
}

We also need to prepare a frame:

void hookFrame()
{
    const string frameTitle = "CAD Practice Drawing: hook";
    const double halfWidth = 200, halfHeight = 287;

    design1.Entities.AddRange(new Entity[] {
        new LinearPath(-halfWidth, -halfHeight, 2 * halfWidth, 2 * halfHeight),
        new Line(-halfWidth / 4, -halfHeight + 30, halfWidth, -halfHeight + 30),
        new Line(-halfWidth / 4, -halfHeight + 30, -halfWidth / 4, -halfHeight),
        new Text(25, -halfHeight + 25, 0, "Title", 4, devDept.Eyeshot.Entities.Text.alignmentType.MiddleCenter),
        new Text(25, -halfHeight + 10, 0, frameTitle, 8, devDept.Eyeshot.Entities.Text.alignmentType.MiddleCenter),
        new Text(115, -halfHeight + 25, 0, "Date", 4, devDept.Eyeshot.Entities.Text.alignmentType.MiddleCenter),
        new Text(115, -halfHeight + 15, 0, "Design", 4, devDept.Eyeshot.Entities.Text.alignmentType.MiddleCenter),
        new Text(115, -halfHeight + 5, 0, "Check", 4, devDept.Eyeshot.Entities.Text.alignmentType.MiddleCenter),
        new Text(180, -halfHeight + 25, 0, "Approve", 4, devDept.Eyeshot.Entities.Text.alignmentType.MiddleCenter),
        new Line(halfWidth - 30, halfHeight - 15, halfWidth, halfHeight - 15),
        new Line(halfWidth - 30, halfHeight - 15, halfWidth - 30, halfHeight),
        new Text(halfWidth - 15, halfHeight - 7.5, 0, "000", 8, devDept.Eyeshot.Entities.Text.alignmentType.MiddleCenter)
    });
    design1.Entities.AddRange(new Entity[] {
        new Line(-halfWidth / 4, -halfHeight + 20, halfWidth, -halfHeight + 20),
        new Line(100, -halfHeight + 30, 100, -halfHeight),
        new Line(130, -halfHeight + 30, 130, -halfHeight),
        new Line(160, -halfHeight + 30, 160, -halfHeight),
        new Line(100, -halfHeight + 10, 160, -halfHeight + 10)
    }, thinLayer);
}

Finally, there's the drawing itself:

void hookDrawing()
{
    // Top hole
    const double
        holeInternDiameter = 28,
        holeExternDiameter = 60,
        holeY = 113;
    GCircle gc0 = new GCircle(0, holeY, 0, holeInternDiameter / 2);
    GArc ga0 = new GArc(0, holeY, 0, holeExternDiameter / 2, -Math.PI / 2, Math.PI * 1.5);
    // Right
    const double
        rightX = 40,
        rightY = 83,
        rightRadius = 20;
    GArc ga1 = new GArc(rightX, rightY, 0, rightRadius, Math.PI / 2, Math.PI * 1.5);
    Point3D a0a1Int = ga0.IntersectWith(ga1)[0];
    ga0.TrimBy(a0a1Int, true);
    ga1.TrimBy(a0a1Int, true);
    // Bottom right
    const double
        bottomX = 6,
        bottomRadius = 65,
        bottomRightRadius = 46;
    GArc ga2 = new GArc(bottomX + bottomRadius - bottomRightRadius, 0, 0, bottomRightRadius, 0, Math.PI / 2);
    GLine ga1toa2 = UtilityEx.GetLinesTangentToTwoCircles(ga1, ga2)[0];
    ga1.TrimBy(ga1toa2.StartPoint, false);
    ga2.TrimBy(ga1toa2.EndPoint, false);
    GArc ga3 = new GArc(bottomX, 0, 0, bottomRadius, Math.PI * 1.5, Math.PI * 2);
    // Bottom
    const double bottomInternalRadius = 25;
    GArc ga4 = new GArc(0, 0, 0, bottomInternalRadius, -Math.PI, Math.PI / 2);
    GLine ga0toa4 = UtilityEx.GetLinesTangentToTwoCircles(ga0, ga4)[2];
    ga0.TrimBy(ga0toa4.StartPoint, false);
    ga4.TrimBy(ga0toa4.EndPoint, false);
    // Bottom left
    const double
        bottomLeftY = -5,
        bottomLeftRadius = 60;
    GArc ga5 = new GArc(bottomX, bottomLeftY, 0, bottomLeftRadius, Math.PI / 2, Math.PI * 1.5);
    // Left
    const double
        leftX = -70,
        leftPolarRadius = 37,
        leftRadius = 8,
        leftBigRadius = 45,
        tangentCircleRadius = 45;
    const double leftPolarAngle = Math.PI * 50 / 180;
    GArc ga6 = new GArc(leftX + leftPolarRadius * Math.Cos(leftPolarAngle), leftPolarRadius * Math.Sin(leftPolarAngle), 0, leftRadius, 0, Math.PI * 3 / 2);
    GArc ga7 = new GArc(leftX, 0, 0, leftBigRadius, 0, leftPolarAngle);
    ga6.TrimBy(ga6.IntersectWith(ga7)[0], true);
    GCircle gc1 = UtilityEx.GetCirclesTangentToTwoCircles(ga5, ga6, tangentCircleRadius, true)[0];
    ga5.TrimBy(gc1.StartPoint, true);
    ga6.TrimBy(gc1.EndPoint, false);

    Arc a0 = new Arc(ga0),
        a1 = new Arc(ga1),
        a2 = new Arc(ga2),
        a3 = new Arc(ga3),
        a4 = new Arc(ga4),
        a5 = new Arc(ga5),
        a6 = new Arc(ga6),
        a7 = new Arc(ga7);
    Circle
        c0 = new Circle(gc0),
        c1 = new Circle(gc1);
    Line
        a1toa2 = new Line(ga1toa2),
        a0toa4 = new Line(ga0toa4);
    design1.Entities.AddRange(new Entity[] { c0, a0, a1, a2, a1toa2, a3, a4, a0toa4, a5, a6, c1, a7 });

    const double DimOffset = 10, AxisOverflow = 5;
    Plane verticalDimensions = new Plane(Point3D.Origin, Vector3D.AxisY, -1 * Vector3D.AxisX);
    Plane Rotation = (Plane)Plane.XY.Clone();
    Rotation.Rotate(leftPolarAngle, Vector3D.AxisZ);
    design1.Entities.AddRange(new Entity[] {
        // Linear dimensions
        new LinearDim(Plane.XY, new Point2D(-holeInternDiameter / 2, holeY),
            new Point2D(holeInternDiameter / 2, holeY), new Point2D(0, holeY + holeExternDiameter / 2 + DimOffset), textHeight),
        new LinearDim(Plane.XY, new Point2D(-holeExternDiameter / 2, holeY),
            new Point2D(holeExternDiameter / 2, holeY), new Point2D(0, holeY + holeExternDiameter / 2 + 2 * DimOffset), textHeight),
        new LinearDim(verticalDimensions, new Point2D(0, 0),
            new Point2D(holeY, 0), new Point2D(holeY / 2, - bottomX - bottomRadius - 2 * DimOffset), textHeight),
        new LinearDim(verticalDimensions, new Point2D(0, -rightX),
            new Point2D(rightY, -rightX), new Point2D(rightY / 2, - bottomX - bottomRadius - DimOffset), textHeight),
        new LinearDim(Plane.XY, new Point2D(0, rightY),
            new Point2D(rightX, rightY), new Point2D(rightX / 2, rightY - 2 * DimOffset), textHeight),
        new LinearDim(Rotation, new Point2D(leftX * Math.Cos(leftPolarAngle), -leftX * Math.Sin(leftPolarAngle)),
            new Point2D(leftX * Math.Cos(leftPolarAngle) + leftPolarRadius, -leftX * Math.Sin(leftPolarAngle)),
            new Point2D(leftX * Math.Cos(leftPolarAngle) + leftPolarRadius / 2, -leftX * Math.Sin(leftPolarAngle) + 2 * DimOffset), textHeight),
        new LinearDim(verticalDimensions, new Point2D(bottomLeftY, -bottomX), new Point2D(0, -bottomX), new Point2D(bottomLeftY / 2, -bottomX - DimOffset), textHeight),
        new LinearDim(Plane.XY, new Point2D(0, 0), new Point2D(bottomX, 0), new Point2D(bottomX / 2, -4 * DimOffset), textHeight),
        new LinearDim(Plane.XY, new Point2D(leftX, 0), new Point2D(0, 0), new Point2D(leftX / 2, - bottomLeftRadius - DimOffset), textHeight),
        // Radial dimensions
        new RadialDim(a1, new Point2D(-25, 10), textHeight),
        new RadialDim(a2, new Point2D(20, 10), textHeight),
        new RadialDim(a3, new Point2D(20, -40), textHeight),
        new RadialDim(a4, new Point2D(-25, -30), textHeight) {
            ArrowsLocation = elementPositionType.Outside
        },
        new RadialDim(a5, new Point2D(-20, -35), textHeight),
        new RadialDim(a6, new Point2D(-10, 20), textHeight) {
            ArrowsLocation = elementPositionType.Outside
        },
        new RadialDim(c1, new Point2D(25, 5), textHeight),
        new RadialDim(a7, new Point2D(30, 10), textHeight),
        // Angular dimension
        new AngularDim(Plane.XY, ga7.Center, ga7.StartPoint, ga7.EndPoint, new Point2D(10, 20), textHeight)
        {
            ExtLineOffset = 0
        }
    }, dimLayer);
    design1.Entities.AddRange(new Entity[] // axes
    {
        new Line(-holeExternDiameter / 2 - AxisOverflow, holeY, holeExternDiameter / 2 + AxisOverflow, holeY)
        {
            LineTypeMethod = colorMethodType.byEntity,
            LineTypeName = dashDot
        },
        new Line(leftX - AxisOverflow, 0, bottomX + bottomRadius + AxisOverflow, 0)
        {
            LineTypeMethod = colorMethodType.byEntity,
            LineTypeName = dashDot
        },
        new Line(0, holeY + holeExternDiameter / 2 + AxisOverflow, 0, -bottomRadius - AxisOverflow)
        {
            LineTypeMethod = colorMethodType.byEntity,
            LineTypeName = dashDot
        }
    }, thinLayer);
}
