Multicolored Mesh with transparency

Revised for version 12. Now, viewportLayout1 is of type Model.

Requires Eyeshot >= 10.0.857

Here's an example on how to override the Mesh class in order to draw a semi-transparent mesh with Multicolor nature type.



public class MyMesh : Mesh
{
     public MyMesh(Mesh mesh) : base(mesh) { }

     protected override void DrawEntity(RenderContextBase context, object myParams)
     {
          byte alpha = Color.A;

          switch (MeshNature)
          {
               case natureType.MulticolorPlain:
                  context.DrawMulticolorPlainTriangles(Triangles, Vertices, Normals, alpha);
                  break;
              case natureType.MulticolorSmooth:
                 context.DrawMulticolorSmoothTriangles(Triangles, Vertices, Normals, alpha);
                 break;
              default:
                 base.DrawEntity(context, myParams);
                 break;
          }
      }
}



Then use it like below.


Mesh baseMesh = new Mesh(Mesh.natureType.MulticolorPlain);

baseMesh.Vertices = new PointRGB[]
{
    new PointRGB(0, 0, 0, 255, 0, 87),
    new PointRGB(10, 0, 0, 134, 148, 43),
    new PointRGB(10, 10, 0, 255, 233, 167),
    new PointRGB(0, 10, 0, 133, 222, 255),
    new PointRGB(5, 5, 10, 100, 223, 12)
};

baseMesh.Triangles = new IndexTriangle[]
{
    new IndexTriangle(0, 1, 2),
    new IndexTriangle(0, 2, 3),
    new IndexTriangle(0, 1, 4),
    new IndexTriangle(1, 2, 4),
    new IndexTriangle(2, 3, 4),
    new IndexTriangle(3, 0, 4)
};
MyMesh mesh = new MyMesh(baseMesh);
// Set the ColorMethod
mesh.ColorMethod = colorMethodType.byEntity;
// Set the color with alpha < 255
mesh.Color = Color.FromArgb(150, Color.Black);


viewportLayout1.Entities.Add(mesh);

//Add another mesh for transparency comparison

var box1 = Mesh.CreateBox(5, 5, 5);
box1.Translate(2, 15, 0);
viewportLayout1.Entities.Add(box1,  Color.Red);
viewportLayout1.SetView(viewType.Front, true, false);
viewportLayout1.Invalidate();

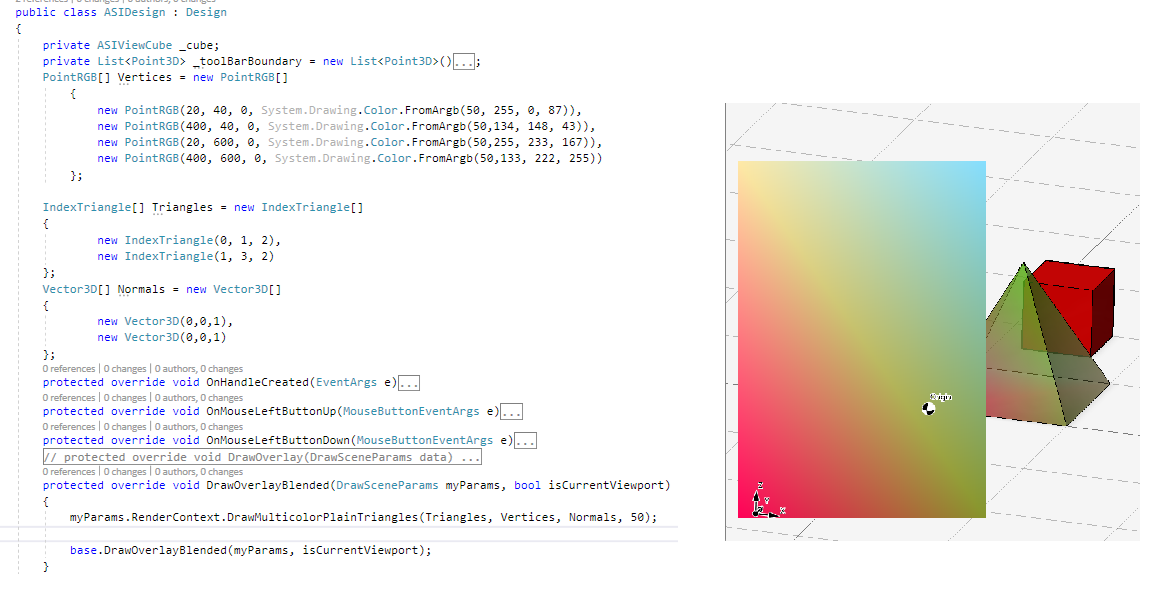

Was this article helpful?
1 out of 1 found this helpful
Have more questions? Submit a request

Comments

2 comments
  • great example he helped me a lot!

    I found an error in line

    case natureType.MulticolorSmooth:
    context.DrawMulticolorPlainTriangles(Triangles, Vertices, Normals, alpha);
    break;


    FIX:
    case natureType.MulticolorSmooth:
    context.DrawMulticolorSmoothTriangles(Triangles, Vertices, Normals, alpha);
    break;



    Thank you!

    0
    Comment actions Permalink
  • Code fixed, thanks for reporting it :)

    0
    Comment actions Permalink
