How to avoid Z-fighting

Suppose that you have two overlapped regions and you want to avoid Z-fighting.


If you want to prevent Z-fighting, you can follow the approach reported below.

First of all, you should decide which entity you prefer to display on top (in this case I choose CircularRegion).

Next, you should create a new class "MyRegion" that derives from CircularRegion, and override Draw() and Render() methods.

class MyRegion : CircularRegion
{
   public MyRegion(double x, double y, double radius)
      : base(x, y, radius)
   {
   }

   protected override void Draw(DrawParams data)
   {
      data.RenderContext.PushRasterizerState();
      data.RenderContext.SetState(rasterizerStateType.CCW_PolygonFill_NoCullFace_PolygonOffset_Minus3Minus2);

      base.Draw(data);

      data.RenderContext.PopRasterizerState();
   }

   protected override void Render(RenderParams data)
   {
      data.RenderContext.PushRasterizerState();
      data.RenderContext.SetState(rasterizerStateType.CCW_PolygonFill_NoCullFace_PolygonOffset_Minus3Minus2);

      base.Render(data);

      data.RenderContext.PopRasterizerState();
   }
}

Finally, when you draw the two entities:

MyRegion circ = new MyRegion(80, 80, 30);
circ.ColorMethod = colorMethodType.byEntity;
circ.Color = Color.Red;
viewportLayout1.Entities.Add(circ);

RectangularRegion rect = new RectangularRegion(200, 200);
rect.Color = Color.Gray;
rect.ColorMethod = colorMethodType.byEntity;
viewportLayout1.Entities.Add(rect);

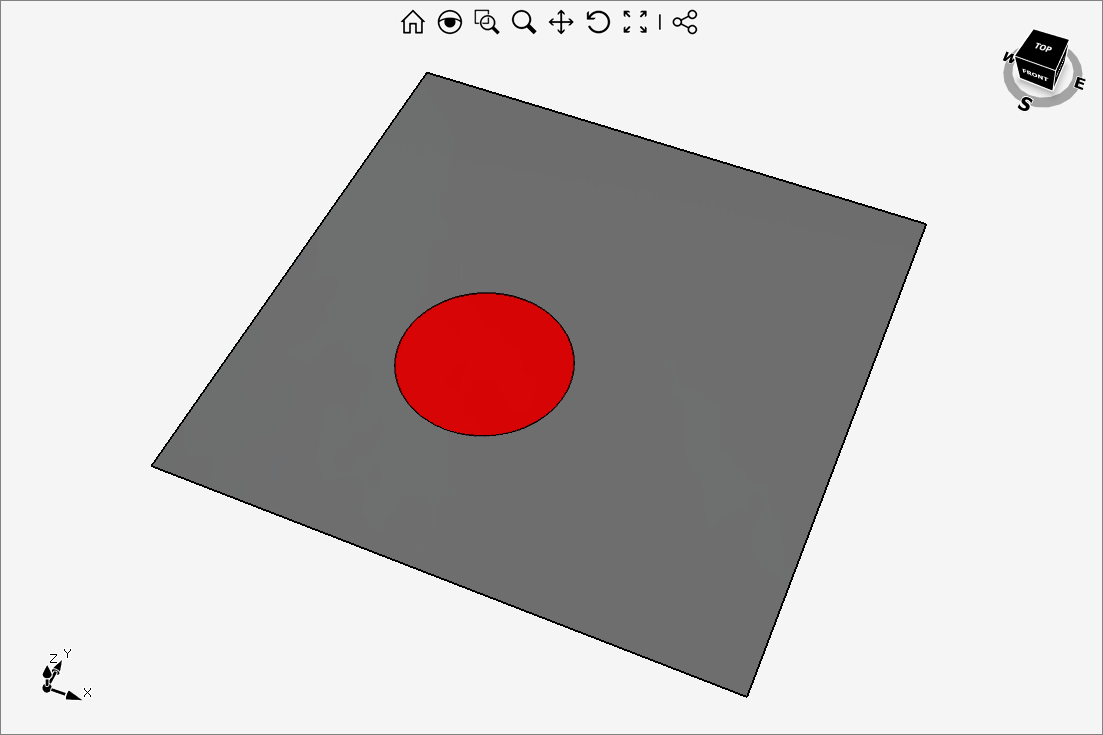

you will obtain the following result:


Previous versions of this article: Eyeshot 7

Was this article helpful?
3 out of 3 found this helpful
Have more questions? Submit a request

Comments

2 comments
  • If a "Surface" is only single sided, and the drawing it done on the underside (i.e. derived class from `LinearPath`) facing outwards, Then this method will force the appearance to be flipped to the inside.



    0
  • This is the solution I am currently using:

    private void BringCloserToEye()
    {
    var viewNormal = ActiveViewport.Camera.ViewNormal;
    viewNormal *= 70; // Move the points 70 mm closer to the observer so that they appear in front of the object drawn upon
    Transformation transform = new Translation(viewNormal);
    // Check to see if the overhead of parallel is going to be worth it.
    if (points.Count > 16)
    {
    Parallel.ForEach(points, pt => { pt.TransformBy(transform); });
    }
    else
    {
    foreach (Point3D pt in points)
    {
    pt.TransformBy(transform);
    }
    }
    }
    0
